7” HD Digital LCD screen automatically selects the format of the camera. Power harness is 18-pin to three 4-pin Male inputs. Speaker is built into the monitor.
Can use existing standard camera cabling already in your truck and improve the image quality. You CANNOT add an AHD camera to an older CVBS monitor.
Auto bright / auto dimming. Image flipping (up, down, left, right). Adjustable backup lines.

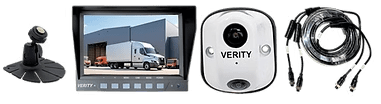

Supports 3 Verity cameras, includes 18-pin harness, Sun Shield, (1) ADD21U Fan-style Monitor Mount, and Manual
Includes (1) C500 Dual-Level/Lens IP68, NTSC, color camera (far and near) 4-pin Male/4-pin Male connector
Includes (1) 20m (65') Y-Y camera cable 4-pin Female/4-pin Female to 4-pin Female/4-pin Female cable with mini-dins.
Power supply: DC 12V~24V with reverse polarity protection
Operation temperatures: -30~70C
Storage temperature: -40~80C
3 AV color coded inputs with color coded trigger wires, auto blue screen if no signal on activated channel
Features: HD sunshade, auto light sensor dimming for buttons and LCD screen, LED blue light buttons, high quality processor, in-line waterproof fuse Easy to use OSD menu function via buttons & remote: image delay on time 0~15s, (for side cameras) Mirror/Normal image, multi-language, NEW! Adjustable guidelines.
CAMERA SPECIFICATIONS (Part # C001J)
Horizontal Resolution: 700 TV Lines
TV System: NTSC
Image Type: 1/3 Inch Color CMOS SONY (or equivalent)
Effective Pixel: 510 (H) x 492 (V)
Illumination: 0 Lux (built-in 20 high-output IR LEDs for night vision)
Unlike a standard single-view camera, the SM273F's C500 dual-level camera gives you two perspectives from one mounting point and one cable — a near view for tight maneuvering and a far view for full situational awareness. Compatible with your truck's existing standard camera cabling, so upgrading doesn't mean rewiring.
