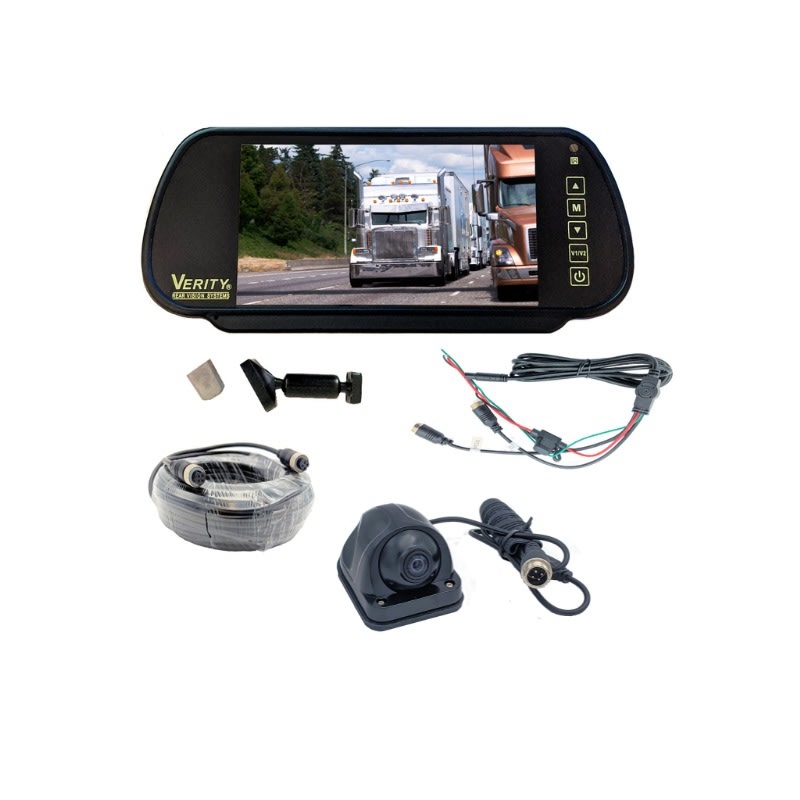

SMM07305 Complete 7-inch Mirror Monitor System w/C305 Camera

• 7" Digital screen slides over 70% - 80% of existing GM, Ford, and Toyota vehicles' original rear view mirror post clips
• Also has clip-on option for non-compatible windshield posts
• Includes C305 Camera, color, mirrored, IP69K waterproof, 180° lens, night vision
• 20-meter (65 foot) Female/Female camera extension cable
• Manual
• Perfect for vehicles that have no rear windows or view is obstructed

• 7-inch Clip-On or post-mount mirror monitor

• TFT-LCD(16:9)

• Format: NTSC

• New Higher Resolution: 800 (W) x 480 (H) RGB

• Power supply: DC 12-24 v

• Video: 2-channel video input, V1/V1 switching with4-pin male aviation connections

• Displays blue screen on "no signal"

• Operation mode: auto-switch when backing up

• Contrast: 300:1

• Brightness: 300 cd/m2

• Operating temperature: -10~70°

• Storage temperature: -20~80°

• Waterproof fuses(2A)

CAMERA SPECIFICATIONS
(Camera Part #C305)

• Horizontal Resolution: 700 TVL
• TV System: NTSC
• Image Type: CMOS-CVBS
• Aluminum Housing
• Waterproof: IP69K
• Power Supply: DC 12V (powered from the monitor)
• Operating Temperature: -20 degrees C ~+75 degrees C
• Viewing Angle: 180 degrees horizontal (+/- 5 degrees), 100 degrees vertical (+/- 5 degrees)
