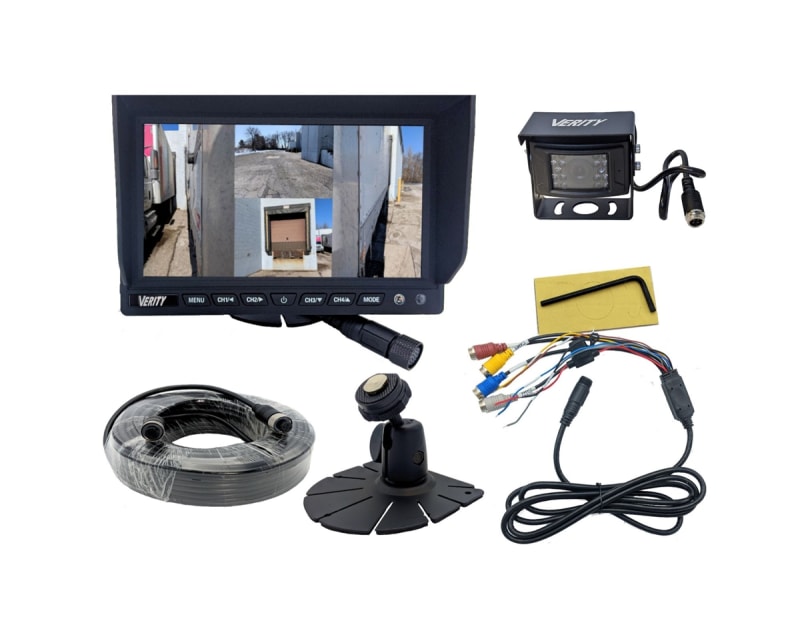

SMQ7S Complete S Series QUAD 7-inch Rear Vision System (w/C001S Camera)

• 7” HD Digital LCD screen with ultra-clear image in a durable housing, auto dimming, removable sunshield
• Supports up to 4 Verity cameras, built-in controller for trigger screen activation
• Clear sound speaker, easy to use advance operation menu, backlighted buttons
• Includes (1) C001S Standard Rear View, IP69K waterproof, 170° lens, color camera with night vision,
• Includes (1) ADD21U heavy duty monitor mount,
• Includes (1) CB021 20m (65ft) camera cable (female / female)
• See Flyer for more information
• Built for the demands of commercial use at commodity pricing!

MONITOR SPECIFICATIONS:

(Monitor part #MKQ7S)

• Screen size: 7-inch 800 × 480 Pixel (RGB)

• System: PAL/NTSC (automatic)

• Brightness: 300 cd/m2

• Power supply: DC 12V~24V with reverse polarity protection

• Operation temperature: -20°~70°C

• Storage temperature: -30°~70°C

• Monitor view angle: Horz. L(60) R(60) Vert. UP(40) DOWN(60)

• 4 camera inputs with shrink tube labeled trigger wires,

• Auto blue screen if no signal on the activated channel.

• Size: 7” (W) x 4 ¾” (H) x 2 ¾” (D) Weight: 16.4 oz


Features: Removable HD sunshade, LCD screen, LED blue light buttons, high-quality processor, in-line waterproof fuse, easy to use OSD menu function via buttons: reversing image delay time 0~10s, Mirror/Normal image, plus horizontal flip, multi-language, high output speaker.

CAMERA SPECIFICATIONS:
(Camera Part #C001S)

• Horizontal Resolution: 600 TV Lines

• TV System: NTSC

• Image Type: 1/3 Inch Color CCD Sharp® (or equivalent)

• Effective Pixel: 510 x 492

• Illumination: 0 Lux (built-in 17 high output IR LEDs for night vision)

• Aluminum Housing

• Waterproof: IP69K (IP68K with microphone)

• Power Supply: DC 12V (powered from the monitor)

• Shockproof: 10G

• Operating Temperature: -40°~70°C

• Built-in Microphone

• Viewing Angle: 130° Horizontal
